SPECIFICATIONS

• Model: Q4
• Color: Black
• DAC Chippest : MS8412
• USB Chipset: SA9023
• Headphone Chippest: 97220
• OPM Chippest: NE5532
• PC-USB supports input sampling rate: 96K/24-bit
• High and low sound adjustment range: ±6dB
• Fiber/coaxial support input sampling rate: 192K/24-bit
• Frequency response: 20Hz-20kHz (±3dB)
• PC-USB support operating system: XP/W7/W8/W10/MAC/linux
• Distortion: 0.01%; SNR: ≥105dB
• Amp output maximum power: 125mW 32Ω load
• Headphone matching impedance: 16-200Ω
• Working voltage: DC5V; RCA output level: 2.3V
• Size (L*W*H): 73.5*98*33MM (without knobs and terminals)

About This Item:

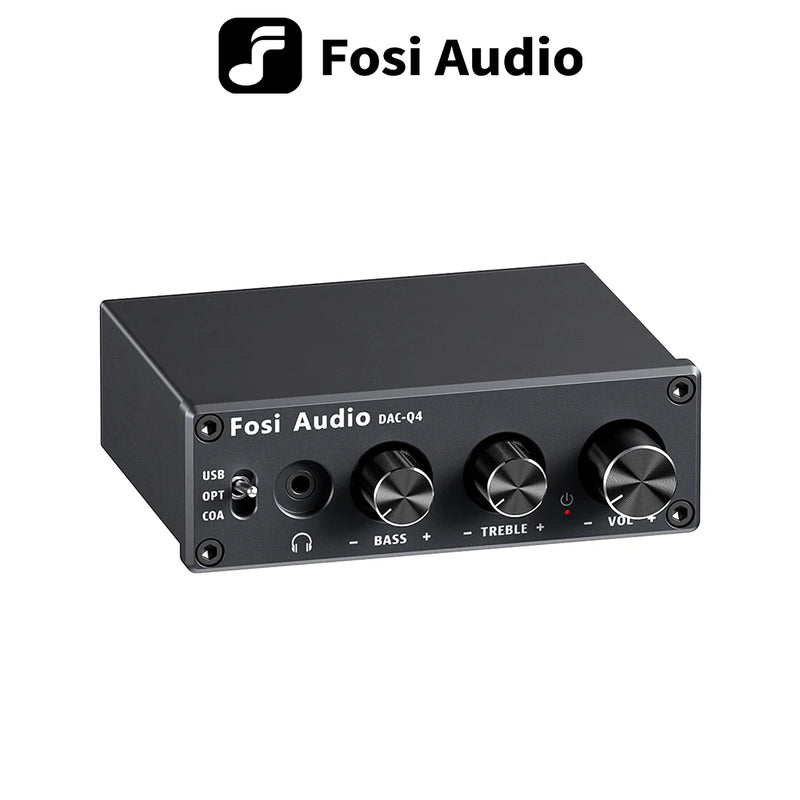

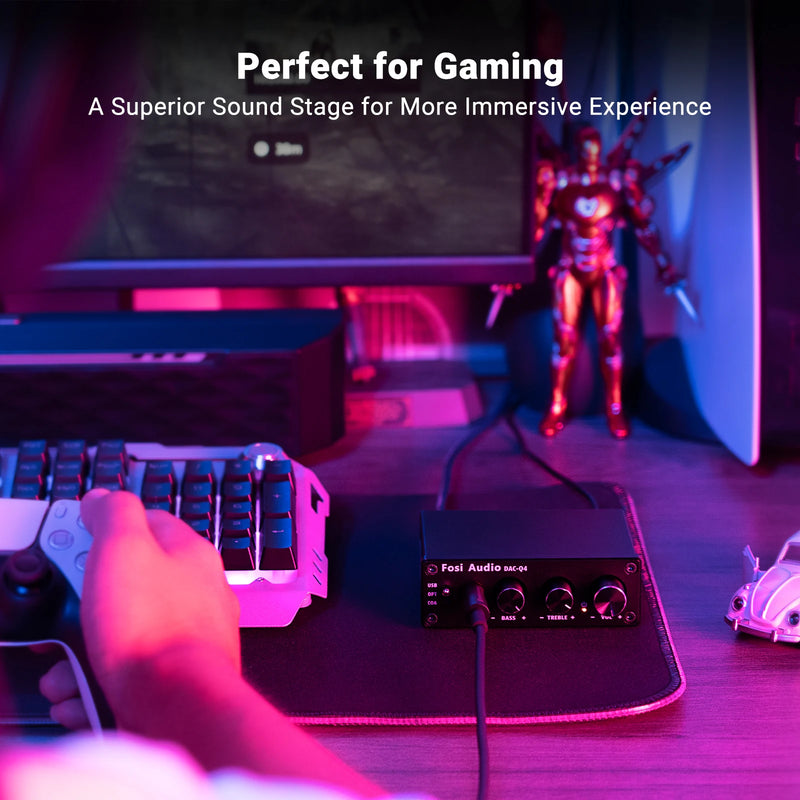

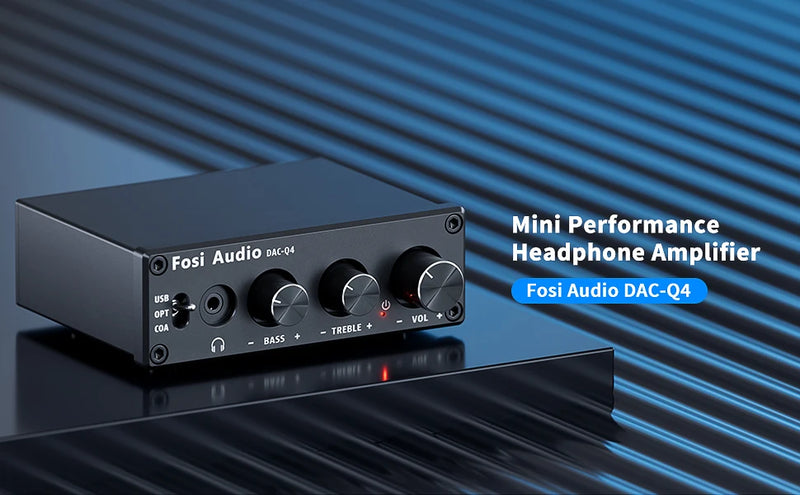

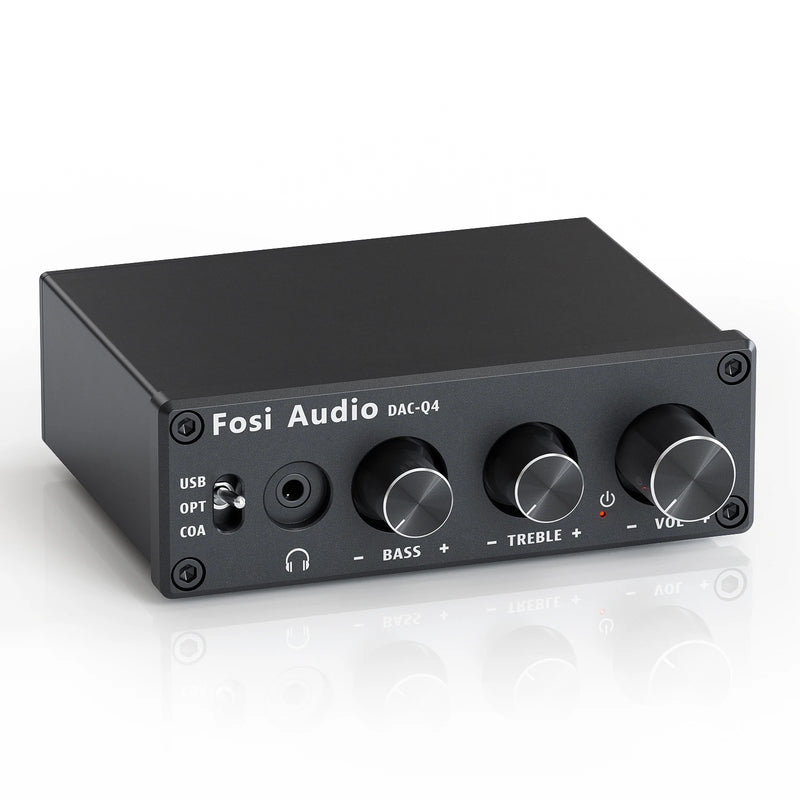

Fosi Audio Q4 - Mini Stereo USB Gaming DAC & Headphone Amplifier Audio Converter Adapter for Home/Desktop Powered/Active Speakers

Features:

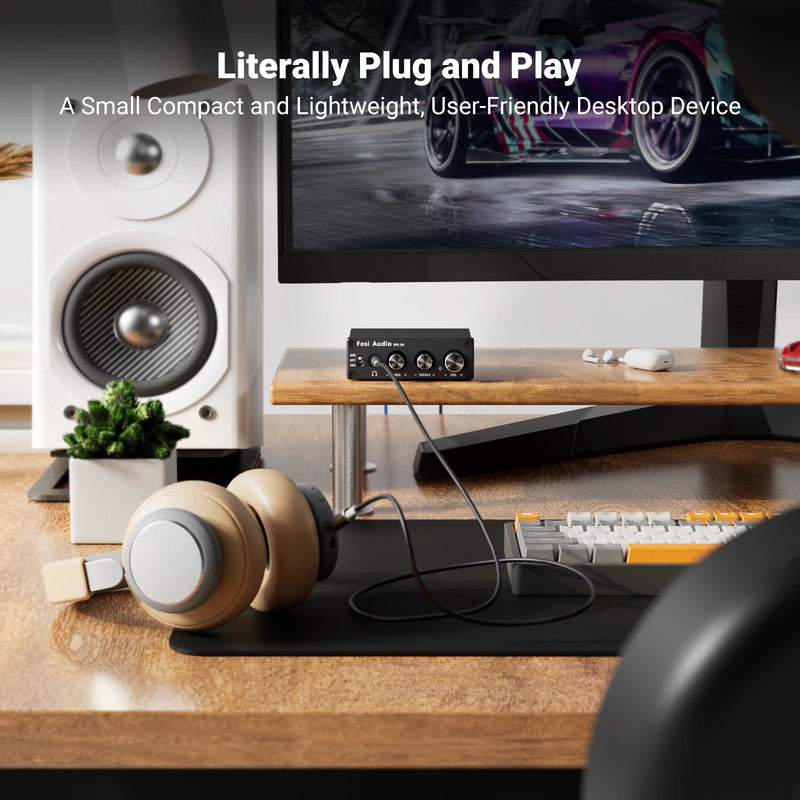

• Easy to set up, no special software, app, or driver to install, a true plug-and-play digital audio adapter.

• You will get a neutral sound when you adjust the EQ to the 12 o'clock position.

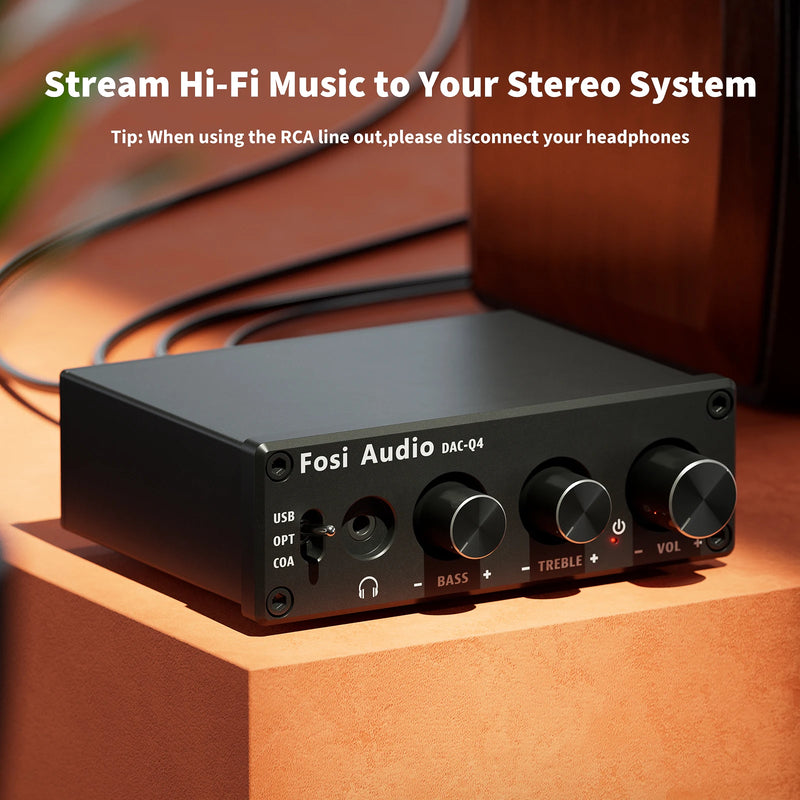

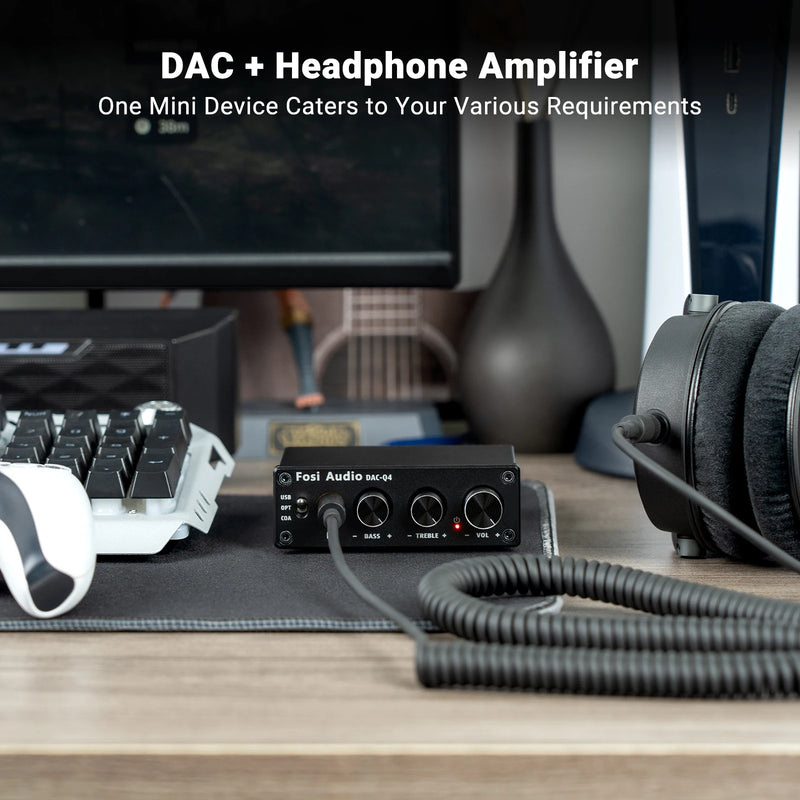

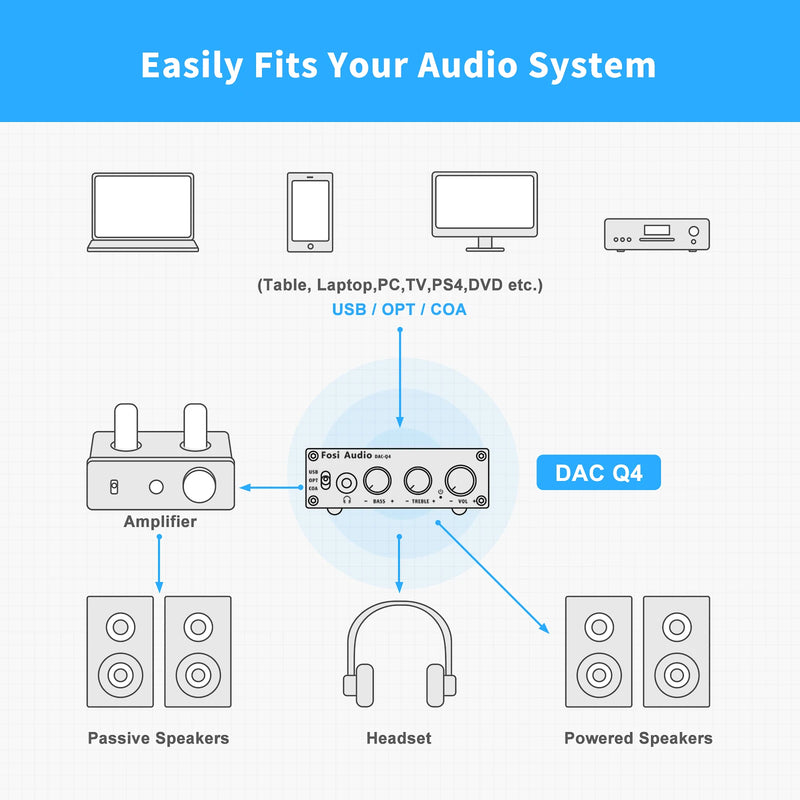

• With USB, optical, and coaxial S/PDIF inputs that can fit most home audio systems, and RCA output can be connected to an amplifier or powered speakers on your desktop; Built-in Hi-Fi headphone amp chip can drive most 16-ohm to 200-ohm headphones

• 160mW RMS(32 ohms, 20 Hz - 20 KHz, 0.01% THD), with bass and treble control, can be used as a preamp or volume controller for your PC/MAC/Computer

• Mini Compact D/A converter, stream bit-perfect 24bit/192KHz HD with low jitter, with output protect circuit, safe for your expensive audio system

• We offer a 24-month warranty and friendly customer service!

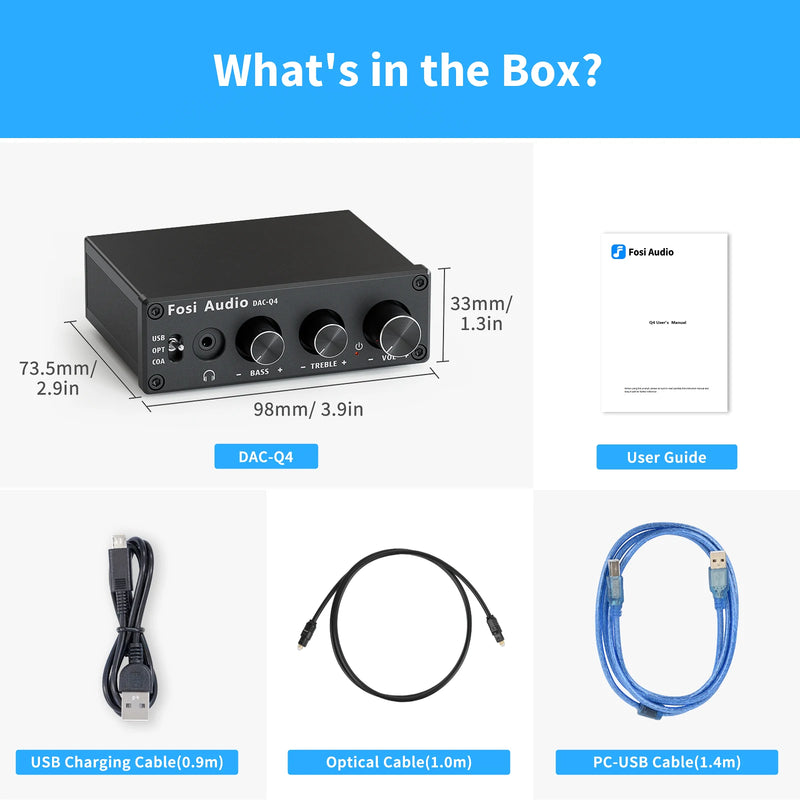

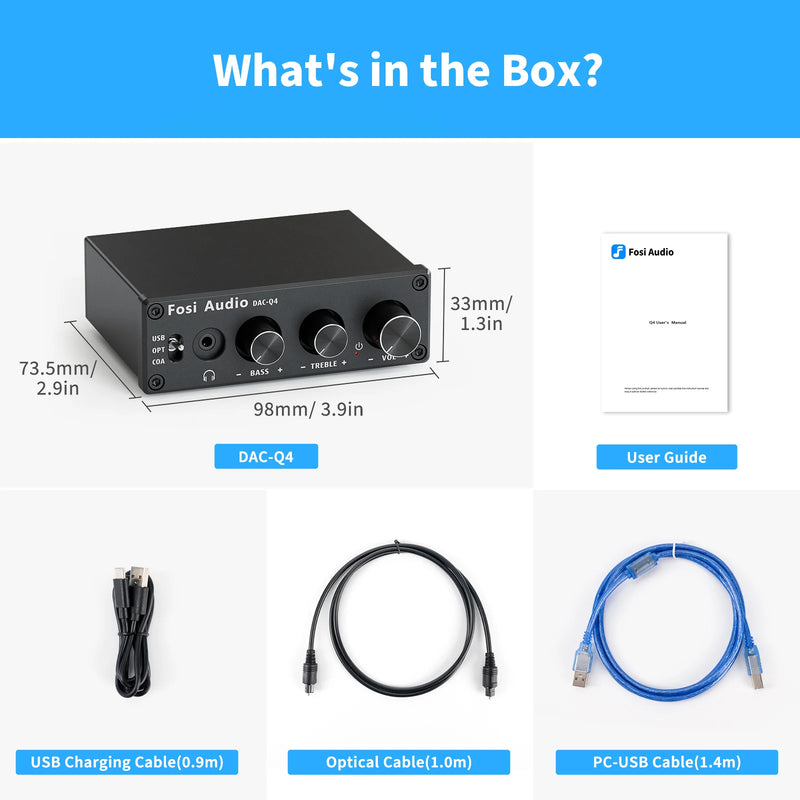

Highlight: Package Include:

• 1x Fosi Audio DAC-Q4

• 1x 5V USB Power Supply Cable

• 1x PC-USB Cable

• 1x Optical Cable

• 1x User’s Manual
